Non-ferrous metal

Non-binding information depending on manufacturer

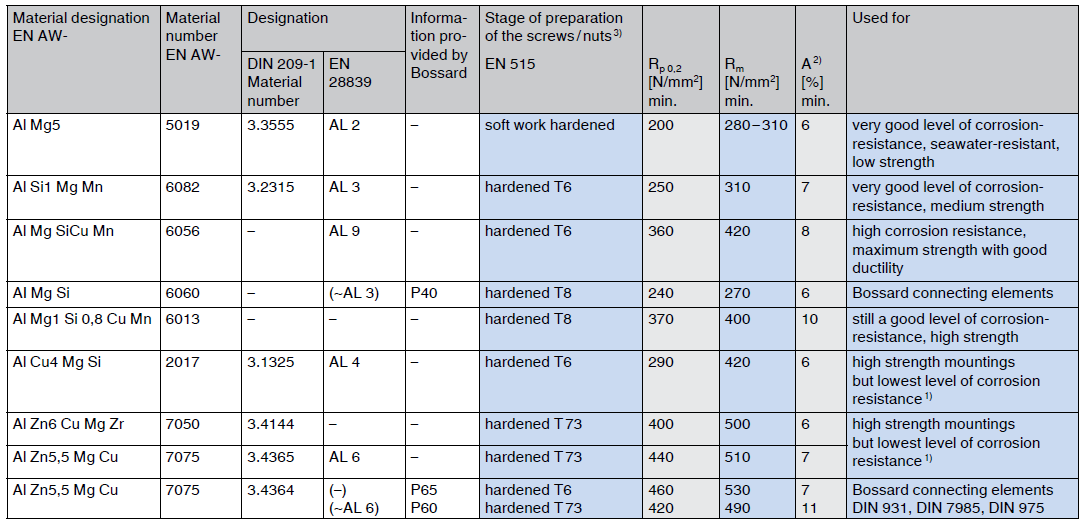

The values in the table are for: density = 2,8 kg/dm³, coefficient of thermal expansion = 23,6 · 10^–6 · K^–1, modulus of elasticity = 70 000 N/mm²

¹⁾ Subject to stress corrosion cracking due to the high copper content
²⁾ Elongation at break A – Test on bolt with 2 x d grip length
³⁾ T6 – Solution heat-treated and artificially aged
   T8 – Solution heat-treated, cold-formed, and artificially aged
   T 73 – Solution heat-treated and artificially overaged (artificially aged) in order to achieve the best stress corrosion resistance

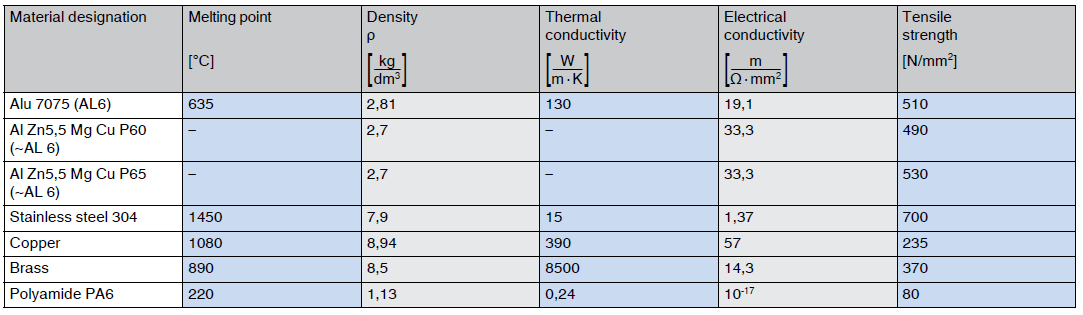

Non-binding information depending on manufacturer

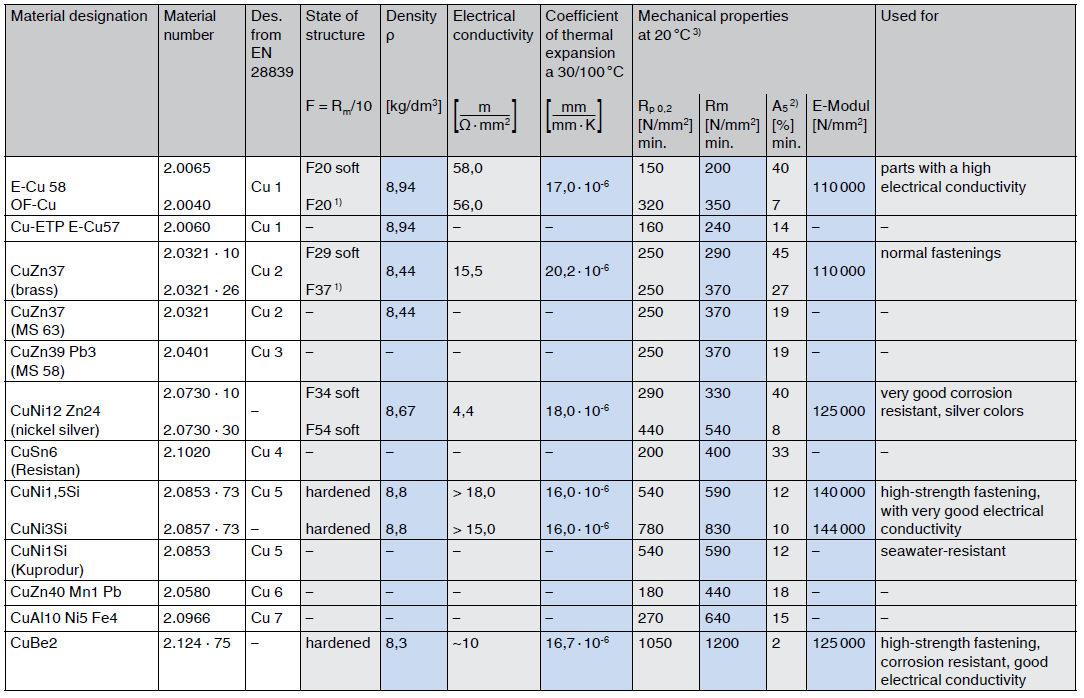

Non-binding information depending on manufacturer

¹⁾ Cold strain hardening
²⁾ Elongation at break A₅ – Test on machined test rod with 5 x d test length
³⁾ 1 N/mm² = 1 MPa

according to ISO 8839

¹⁾ The torque test is to be carried out in according to ISO 898-7
