Advantages:
- Powerful
- Reliable
- Flexible
- Safe
- Modular upgrading
- Completely assembled and ready for use
Haeger® Insertion Presses
The Haeger® inserter system is based entirely on hydraulics and can be equipped modularly according to requirements and task. The single touch technology makes possible precise and reliable insertion of PEM® self-clinching nuts.
Save Time, Money and Energy Through Automation
The Haeger® 824 OneTouch 4e was put to the test to determine the possible savings potential. For this purpose, four different PEM® self-clinching fasteners were processed completely automatically. In direct comparison to the manual setting process, the advantages of an automated system solution are obvious:
- Cost reduction of EUR 3,398
- Time saving of 70%
- 30% lower energy consumption
Contact us today and increase the productivity of your company sustainably.
FLEXIBLE INSERTION PRESSES BY HAEGER®
Modell 618 MSP 5He
- Maximum pressure 53 kN
- Positive stop system optional
- Automatic feed system for inserts optional
- TPS controls and tool shelf
- TIS turnstile optional
- Robot ready on request
Modell 824 MSP 5He
- Maximum pressure 72 kN
- Positive stop system standard
- Automatic feed system for inserts optional
- TPS controls and tool shelf
- TIS turnstile optional
- Robot ready optional
Modell 824 WindowTouch 5He
- Maximum pressure 72 kN (optional upgrade to 90 kN)
- Tool-change in three seconds instead of three minutes as with smaller models
- New T-harness to ensure precision in setting
- Automatic feed system for inserts standard
- Integrated tool retainer
- TIS turnstile standard
- Robot ready on request (not in combination with TIS)
Modell 824 OneTouch 5He LITE
All the advantages of the 824 WindowTouch 5He plus additional equipment:
- A second automatic feed system and tool change
- Within ten seconds it is possible to change to any required tool setting
- TIS turnstile standard
Modell 824 OneTouch 5He
All the advantages of the 824 WindowTouch 5He plus additional equipment:
- Automatic four-position bottom tool-changer
- Automatic four-position top tool-changer
- Four-way automatic feed system for inserts
- Robot ready optional

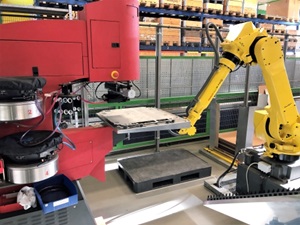

Expansion module "robot ready"
The "robot ready" expansion module includes the following components:
- Robot lower tool holder with part alignment feedback: Equipped with a sensor that provides feedback to the robot. Enables a quick and easy set-up as well as continuous process optimization.
- Fastener Removal System: Rejects incorrect fasteners; incorrect fastener lengths are removed by the system.
Haeger® and PEMSERTER® Brochure
Liên hệ với chúng tôi
Not Found the Right Insertion Press?
In addition to the Haeger® brand insertion presses listed above, we also offer an extensive range of machines from our partner PEM®.
Matching Self-Cliching Fasteners
We offer a wide range of PEM® self-clinching fasteners to match our insertion presses. We will be happy to help you select the right product and advise you quickly, competently and free of charge.
